Transducers

Fujifilm Healthcare’s wide range of probes are built with the surgeon in mind. Our ergonomic designs easily adapt to a surgeon's technique and fully cover the expanding range of procedures that benefit from ultrasound guidance.

C22T

Deep Penetration “T” Style Finger-Grip Transducer

Curved
6 - 1 Mhz
20 mm Radius
82° FOV

C22I

Deep Penetration “I” Style Finger-Grip Transducer

Curved
6 - 1 Mhz
20 mm Radius
82° FOV

C22P

Intercostal and Biopsy Transducer

Convex
6 - 1 MHz
20 mm Radius
75º FOV

C251

Abdominal Imaging and Biopsy Transducer

Convex
5 - 1 MHz
50 mm Radius
75° FOV

C41

Cranial Guidance Transducer

Convex
13 - 4 MHz
12 mm Radius
100° FOV

C41V

End-Fire Transducer

Convex
10 - 2 MHz
10mm Radius
200º FOV

C41L47RP

Bi-Plane Prostate Transducer

Convex / Linear
8 - 4 / 10 - 5 MHz
10 / 64 mm
200° FOV

C42K

Cranial Guidance Transducer

Convex
10 - 4 MHz
20 mm Radius

C42T

“T” Style Finger-Grip Transducer

Curved
10 - 3 Mhz
20 mm Radius
65° FOV

CC41R

Simultaneous Bi-Plane Transducer

Convex / Linear
8 - 4 / 8 - 4 MHz
10 / 10 mm
120° FOV

L43K

Robotic Transducer

Linear
12 - 2 MHz
26 mm

L44K

Narrow-View Side-Fire “T” Transducer

Linear
14 - 2 MHz
42 mm

L44LA

4-way Laparoscopic Transducer

Linear
13 - 2 MHz
10 mm
36 mm

L44LA1

Rigid Laparoscopic Transducer

Linear
13 - 2 MHz
10 mm
38 mm

L46K1

Wide-View Side-Fire “T” Transducer

Linear
14 - 2 Mhz
63 mm

L51K

GEN III: Robotic Transducer

Linear
15 - 3 MHz
13 mm Radius

L53K

Hockey-Stick Super High Frequency Linear Array Transducer

Linear
15 - 3 MHz
25 mm

L55

50mm Linear Array Transducer

Linear
13 - 5 MHz
50 mm Width

L64

High Frequency Linear Array Transducer

Linear
18 - 5 MHz
38 mm Width

S31KP

Burr-Hole Guidance Transducer

8 - 3 MHz | 90° FOV
12 mm Insertion | Phased

UST-5311

Pituitary Guidance Transducer

Linear
17 - 4 MHz
10mm Width

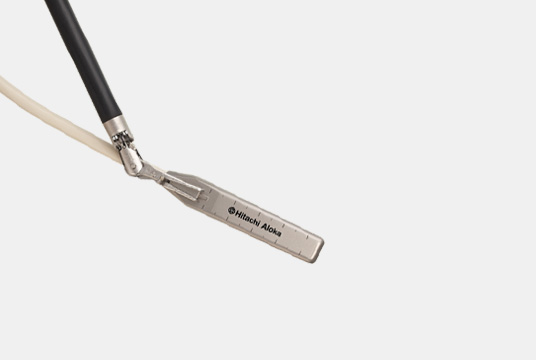

UST-5550-R

Robotic Transducer

Linear
13 - 4 MHz
38 mm Width

C9150LA

4-way Laparoscopic Transducer

Curved
13 - 5 Mhz
40 mm Radius
40 ° FOV

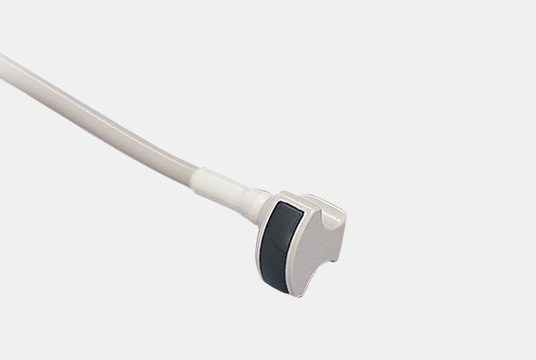

C22T - Deep Penetration “T” Style Finger-Grip Transducer

Curved array deep penetration “T” style finger-grip transducer for open surgical procedures.

Provides a transverse view in relation to the position of the transducer in the hand
Designed to fit comfortably between the index and middle finger
Allows for palpating organs and scanning at the same time
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation
Valuable information to guide tumor resections

Main Specifications:

Array Type: Curved
Frequency Range: 6 - 1 Mhz
Scan Width: 20 mm Radius
Scan Angle: 82° FOV

C22I - Deep Penetration “I” Style Finger-Grip Transducer

Curved array deep penetration “I” style finger-grip transducer for open surgical procedures.

Designed to fit comfortably between the index and middle finger
Allows for palpating organs and scanning at the same time
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation
Valuable information to guide tumor resections

Main Specifications:

Array Type: Curved
Frequency Range: 6 - 1 Mhz
Scan Width: 20 mm Radius
Scan Angle: 82° FOV

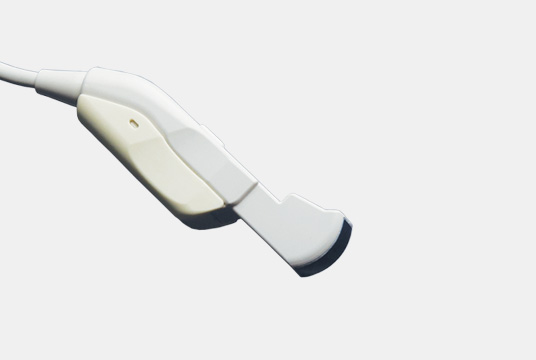

C22P - Intercostal and Biopsy Transducer

Main Specifications:

Array Type: Convex
Frequency Range: 1 - 6 MHz
Scan Width: 20 mm
Scan Angle: 75° FOV

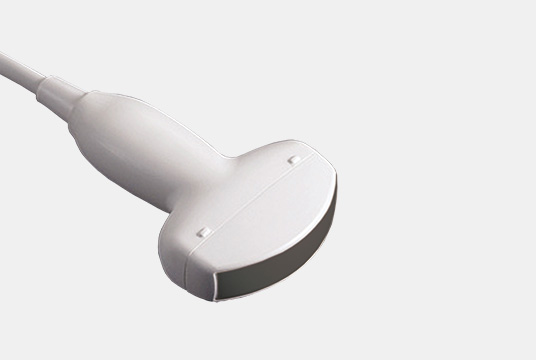

C251 - Abdominal Imaging and Biopsy Transducer

Abdominal transducer for biopsy, bladder and renal applications.

Built to withstand the rigors of daily use
Multi-layered crystal technology
Exceptional near and far-field resolution
Broadband design 5 - 1 MHz

Main Specifications:

Array Type: Convex
Frequency Range: 5 - 1 MHz
Scan Width: 50 mm Radius
Scan Angle: 75° FOV
Smart Connector

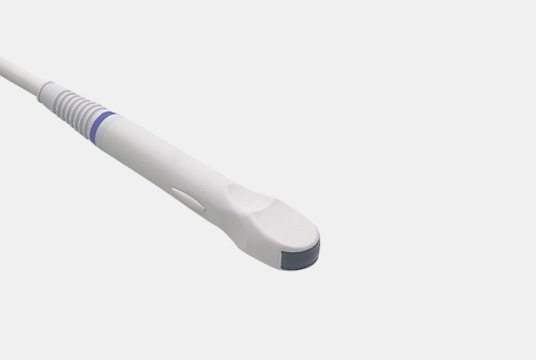

C41 - Cranial Guidance Transducer

Tight curved (12mm) array transducer that is ideal for scanning during cranial guidance procedures.

Exceptional near and far-field resolution
Outstanding detail for accurate biopsy needle guidance
Instant feedback on tumor margin delineation and tumor resection
Localization of the sulcus for complete access and visualization into the subcortical space

Main Specifications:

Array Type: Convex
Frequency Range: 13 - 4 MHz
Scan Width: 12 mm Radius
Scan Angle: 100° FOV

C41V - End-Fire Transducer

Exclusive 200° FOV end-fire prostate biopsy transducer.

Allows visualization of the entire gland from apex to base
Crystal dense array provides outstanding image quality

Main Specifications:

Array Type: Convex
Frequency Range: 10 - 2 MHz
Scan Width: 10mm Radius
Scan Angle: 200º FOV

C41L47RP - Bi-Plane Prostate Transducer

Ideal transducer for Transperineal Biopsy, Hydrogel Spacer Placement, Brachy LDR & HDR, Cryo, and MPMRI procedures.

Exclusive 64mm linear array accommodates even the largest gland
Exclusive 200 degree FOV allows visualization of the entire gland
Crystal dense array provides outstanding image quality

Main Specifications:

Array Type: Convex / Linear
Frequency Range: 8 - 4 / 10 - 5 MHz
Scan Width: 10 / 64 mm
Scan Angle: 200° FOV

C42K - Cranial Guidance Transducer

Smaller footprint (20mm) curved array transducer that is ideal for scanning during cranial guidance procedures.

Exceptional near and far field resolution
Outstanding detail for accurate biopsy needle guidance
Instant feedback on tumor margin delineation and tumor resection
Localization of the sulcus for complete access and visualization into the subcortical space

Main Specifications:

Array Type: Convex
Frequency Range: 10 - 4 MHz
Scan Width: 20 mm Radius
Scan Angle: 65° FOV

C42T - “T” Style Finger-Grip Transducer

Curved array “T” style finger-grip transducer for open surgical procedures.

Provides a transverse view in relation to the position of the transducer in the hand
Designed to fit comfortably between the index and middle finger
Allows for palpating organs and scanning at the same time
Exceptional near and far field resolution
Instant feedback on tumor margin delineation
Valuable information to guide tumor resections

Main Specifications:

Array Type: Curved
Frequency Range: 10 - 3 Mhz
Scan Width: 20 mm Radius
Scan Angle: 65° FOV

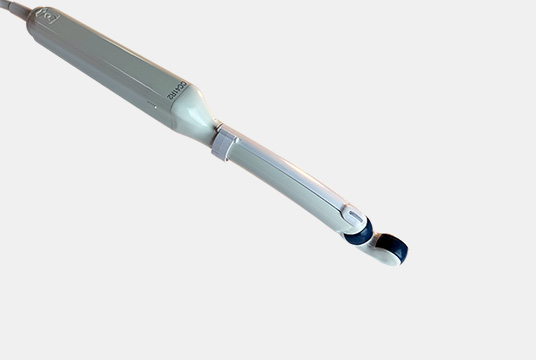

CC41R - Simultaneous Bi-Plane Transducer

Provides real-time imaging of both the sagittal and transverse planes

Simultaneous images provide visualization of the needle in both planes
Enhanced visualization of needle entry and needle path for more confident biopsies
Crystal dense array provides outstanding image quality

Main Specifications:

Array Type: Convex / Linear
Frequency Range: 8 - 4 / 8 - 4 MHz
Scan Width: 10 / 10 mm
Scan Angle: 120° FOV

L43K - Robotic Transducer

Smaller profile provides greater control and access during robot-assisted procedures
Optimum location and design of grasping mechanism allows for full wrist articulation
Ideal for liver and kidney scanning
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation

Main Specifications:

Array Type: Linear
Frequency Range: 12 - 2 MHz
Scan Width: 26 mm

L44K - Narrow-View Side-Fire “T” Transducer

Linear array side-fire “T” transducer for open surgical procedures.

Smaller design for easy access
Trapezoid imaging expands visibility
Narrow field of view (42mm)
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation
Valuable information to guide tumor resections

Main Specifications:

Array Type: Linear
Frequency Range: 14 - 2 MHz
Scan Width: 42 mm

L44LA - 4-way Laparoscopic Transducer

Exclusive linear array 4-way laparoscopic transducer for better visualization of targeted lesions.

Built to withstand the rigors of daily laparoscopic surgery
Ideal for liver and kidney scanning
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation

Main Specifications:

Array Type: Linear
Frequency Range: 13 - 2 MHz
Insertion Diameter: 10 mm
Scan Width: 36 mm

L44LA1 - Rigid Laparoscopic Transducer

Exclusive linear array rigid laparoscopic transducer for better visualization of targeted lesions.

Built to withstand the rigors of daily laparoscopic surgery
Preferred transducer for liver RFA and biopsies
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation

Main Specifications:

Array Type: Linear
Frequency Range: 13 - 2 MHz
Insertion Diameter: 10 mm
Scan Width: 38 mm

L46K1 - Wide-View Side-Fire “T” Transducer

Linear array side-fire “T” transducer for open surgical procedures.

Wide field of view (63mm)
PLUS Trapezoid imaging to further expand visibility
Exceptional near and far-field resolution
Instant feedback on tumor margin delineation
Valuable information to guide tumor resections

Main Specifications:

Array Type: Linear
Frequency Range: 14 - 2 Mhz
Scan Width: 63 mm

L51K - GEN III: Robotic Transducer

Functional Length ~ 3cm provides superior surface contact
Optimum location and design of grasping mechanism allows for full wrist articulation
Cable flexibility reduces overall functional length to reach complex angles
Flat array geometry combined with trapezoid imaging results in less surface pressure on organs while providing a very wide field of view
Provides superior control and access during robot-assisted procedures
Exceptional near and far-field resolution

Main Specifications:

Array Type: Linear
Frequency Range: 15 - 3 MHz
Scan Width: 13 mm Radius

L53K - Hockey-Stick Super High Frequency Linear Array Transducer

Hockey-stick linear array transducer is the transducer of choice for cervical spine scanning.

Exceptional near and far-field resolution
Instant feedback on tumor margin delineation
Valuable information to guide tumor resections
Assistance in achieving complete tumor resection

Main Specifications:

Array Type: Linear
Frequency Range: 15 - 3 MHz
Scan Width: 25 mm

L55 - 50mm Linear Array Transducer

Larger footprint is ideal for scrotal and penile doppler imaging

Exceptional near and far field resolution
Trapezoid Display - extends field of view and enables visualization of entire structure
High Color Doppler sensitivity enhances visualization of superficial structures
Oblique B-Mode Image
- Utilize oblique angle views in B-mode to steer the beam not just CFI/CFA
- Enhances visualization of anatomy and needles perpendicular to the sound beam

Main Specifications:

Array Type: Linear
Frequency Range: 13 - 5 MHz
Scan Width: 50 mm

L64 - High Frequency Linear Array Transducer

38mm footprint is ideal for scrotal and penile doppler imaging

Exceptional near and far field resolution
Trapezoid Display - extends field of view and enables visualization of entire structure
High Color Doppler sensitivity enhances visualization of superficial structures
Enhances visualization of anatomy and needles perpendicular to the sound beam

Main Specifications:

Array Type: Linear
Frequency Range: 18 - 5 MHz
Scan Width: 38 mm Width
Smart Connector

S31KP - Burr-Hole Guidance Transducer

The world's only phased array burr-hole transducer that is ideal for scanning during burr-hole guidance procedures.

Unique bayonetted design
Exceptional near and far-field resolution
Instant feedback for accurate shunt and drain placements
Outstanding detail for accurate biopsy needle guidance
Localization of the sulcus for complete access and visualization into the subcortical space

Main Specifications:

Array Type: Phased
Frequency Range: 8 - 3 MHz
Insertion Diameter: 12 mm
Scan Angle: 90° FOV

UST-5311 - Pituitary Guidance Transducer

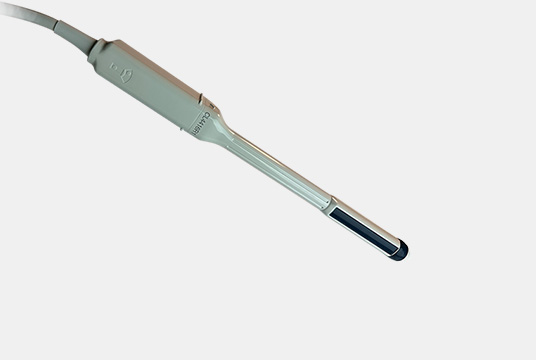

Exclusive 10mm side‐fire linear array transducer with 2.87mm diameter is ideal for real‐time visualization through and behind structures and instant, scalable definition of anatomy and vascularity including the ability to delineate and define tumor margins.
